Background

Will plan fix the issues for CocoaPods static lib

The first things is understand the core code Pods-*-resources.sh.

Detail

All commit will add on the Code

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148

#!/bin/sh
set -e # 设置在脚本中遇到错误时立即退出。
set -u # 设置当使用未定义的变量时脚本退出。
set -o pipefail # 设置管道命令中任一命令失败时整个管道命令失败。

function on_error { # 定义一个名为on_error的函数，用于处理错误情况。
  echo "$(realpath -mq "${0}"):$1: error: Unexpected failure"
}
trap 'on_error $LINENO' ERR # 当发生错误时，执行on_error函数，并传递当前行号。

# 检查UNLOCALIZED_RESOURCES_FOLDER_PATH变量是否为空。如果为空，则表示没有资源需要复制，直接退出脚本。
if [ -z ${UNLOCALIZED_RESOURCES_FOLDER_PATH+x} ]; then
  # If UNLOCALIZED_RESOURCES_FOLDER_PATH is not set, then there's nowhere for us to copy
  # resources to, so exit 0 (signalling the script phase was successful).
  exit 0
fi

mkdir -p "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}" # 创建目标构建目录中的资源文件夹。

RESOURCES_TO_COPY=${PODS_ROOT}/resources-to-copy-${TARGETNAME}.txt # 设置要复制的资源文件列表的路径。
> "$RESOURCES_TO_COPY" # 清空或创建一个空的资源文件列表。

XCASSET_FILES=() # 定义了一个空的数组变量XCASSET_FILES，用于存储.xcassets文件的路径。

# This protects against multiple targets copying the same framework dependency at the same time. The solution
# was originally proposed here: https://lists.samba.org/archive/rsync/2008-February/020158.html
RSYNC_PROTECT_TMP_FILES=(--filter "P .*.??????") # 定义了一个名为RSYNC_PROTECT_TMP_FILES的数组变量，用于保护临时文件不被复制。通过--filter选项配置了一个过滤器，用于排除以.开头、后面跟着6个字符的临时文件。

case "${TARGETED_DEVICE_FAMILY:-}" in #根据TARGETED_DEVICE_FAMILY环境变量的值，使用case语句来选择不同的逻辑分支。
  1,2)
    TARGET_DEVICE_ARGS="--target-device ipad --target-device iphone"
    ;;
  1)
    TARGET_DEVICE_ARGS="--target-device iphone"
    ;;
  2)
    TARGET_DEVICE_ARGS="--target-device ipad"
    ;;
  3)
    TARGET_DEVICE_ARGS="--target-device tv"
    ;;
  4)
    TARGET_DEVICE_ARGS="--target-device watch"
    ;;
  *)
    TARGET_DEVICE_ARGS="--target-device mac"
    ;;
esac

# 处理不同类型的资源文件
install_resource()
{
  if [[ "$1" = /* ]] ; then # 函数会判断资源文件的路径是否为绝对路径。如果是绝对路径，则直接使用该路径作为资源路径；
    RESOURCE_PATH="$1"
  else # 如果不是绝对路径，则将$1拼接到${PODS_ROOT}路径后面，作为资源路径。
    RESOURCE_PATH="${PODS_ROOT}/$1"
  fi
  if [[ ! -e "$RESOURCE_PATH" ]] ; then # 函数会检查资源路径是否存在。如果资源路径不存在，则输出错误信息并退出脚本。
    cat << EOM
error: Resource "$RESOURCE_PATH" not found. Run 'pod install' to update the copy resources script.
EOM
    exit 1
  fi
  case $RESOURCE_PATH in
    *.storyboard) # 使用 ibtool 将 .storyboard 文件编译成 .storyboardc 文件。
      echo "ibtool --reference-external-strings-file --errors --warnings --notices --minimum-deployment-target ${!DEPLOYMENT_TARGET_SETTING_NAME} --output-format human-readable-text --compile ${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename \"$RESOURCE_PATH\" .storyboard`.storyboardc $RESOURCE_PATH --sdk ${SDKROOT} ${TARGET_DEVICE_ARGS}" || true
      ibtool --reference-external-strings-file --errors --warnings --notices --minimum-deployment-target ${!DEPLOYMENT_TARGET_SETTING_NAME} --output-format human-readable-text --compile "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename \"$RESOURCE_PATH\" .storyboard`.storyboardc" "$RESOURCE_PATH" --sdk "${SDKROOT}" ${TARGET_DEVICE_ARGS}
      ;;
    *.xib) # 使用 ibtool 将 .xib 文件编译成 .nib 文件。
      echo "ibtool --reference-external-strings-file --errors --warnings --notices --minimum-deployment-target ${!DEPLOYMENT_TARGET_SETTING_NAME} --output-format human-readable-text --compile ${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename \"$RESOURCE_PATH\" .xib`.nib $RESOURCE_PATH --sdk ${SDKROOT} ${TARGET_DEVICE_ARGS}" || true
      ibtool --reference-external-strings-file --errors --warnings --notices --minimum-deployment-target ${!DEPLOYMENT_TARGET_SETTING_NAME} --output-format human-readable-text --compile "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename \"$RESOURCE_PATH\" .xib`.nib" "$RESOURCE_PATH" --sdk "${SDKROOT}" ${TARGET_DEVICE_ARGS}
      ;;
    *.framework) # 将 .framework 文件复制到 ${TARGET_BUILD_DIR}/${FRAMEWORKS_FOLDER_PATH} 目录下。
      echo "mkdir -p ${TARGET_BUILD_DIR}/${FRAMEWORKS_FOLDER_PATH}" || true
      mkdir -p "${TARGET_BUILD_DIR}/${FRAMEWORKS_FOLDER_PATH}"
      echo "rsync --delete -av "${RSYNC_PROTECT_TMP_FILES[@]}" $RESOURCE_PATH ${TARGET_BUILD_DIR}/${FRAMEWORKS_FOLDER_PATH}" || true
      rsync --delete -av "${RSYNC_PROTECT_TMP_FILES[@]}" "$RESOURCE_PATH" "${TARGET_BUILD_DIR}/${FRAMEWORKS_FOLDER_PATH}"
      ;;
    *.xcdatamodel) # 使用 xcrun momc 将 .xcdatamodel 文件编译成 .mom 文件。
      echo "xcrun momc \"$RESOURCE_PATH\" \"${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename "$RESOURCE_PATH"`.mom\"" || true
      xcrun momc "$RESOURCE_PATH" "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename "$RESOURCE_PATH" .xcdatamodel`.mom"
      ;;
    *.xcdatamodeld) # 使用 xcrun momc 将 .xcdatamodeld 文件编译成 .momd 文件。
      echo "xcrun momc \"$RESOURCE_PATH\" \"${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename "$RESOURCE_PATH" .xcdatamodeld`.momd\"" || true
      xcrun momc "$RESOURCE_PATH" "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename "$RESOURCE_PATH" .xcdatamodeld`.momd"
      ;;
    *.xcmappingmodel) # 使用 xcrun mapc 将 .xcmappingmodel 文件编译成 .cdm 文件。
      echo "xcrun mapc \"$RESOURCE_PATH\" \"${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename "$RESOURCE_PATH" .xcmappingmodel`.cdm\"" || true
      xcrun mapc "$RESOURCE_PATH" "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}/`basename "$RESOURCE_PATH" .xcmappingmodel`.cdm"
      ;;
    *.xcassets) # 将 .xcassets 文件路径添加到 XCASSET_FILES 数组中。
      ABSOLUTE_XCASSET_FILE="$RESOURCE_PATH"
      XCASSET_FILES+=("$ABSOLUTE_XCASSET_FILE")
      ;;
    *) # 其他文件：将资源路径输出，并将资源路径添加到 $RESOURCES_TO_COPY 文件中。
      echo "$RESOURCE_PATH" || true
      echo "$RESOURCE_PATH" >> "$RESOURCES_TO_COPY"
      ;;
  esac
}
if [[ "$CONFIGURATION" == "Debug" ]]; then # 根据构建配置的不同，将指定的资源文件, 通过install_resource 命令将复制到目标构建目录中，以供构建进程使用。这些资源文件可能是依赖库中的资源，或者是项目中的自定义资源。
  install_resource "${PODS_CONFIGURATION_BUILD_DIR}/TestLibrary/TestLibrary.bundle"
  install_resource "${PODS_ROOT}/TestLibrary2/TestLibrary2/Assets/TestLibrary2.xcassets"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Contents.json"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/Contents.json"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/Name-XCAI.png"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/[email protected]"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/[email protected]"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset"
fi
if [[ "$CONFIGURATION" == "Release" ]]; then
  install_resource "${PODS_CONFIGURATION_BUILD_DIR}/TestLibrary/TestLibrary.bundle"
  install_resource "${PODS_ROOT}/TestLibrary2/TestLibrary2/Assets/TestLibrary2.xcassets"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Contents.json"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/Contents.json"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/Name-XCAI.png"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/[email protected]"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset/[email protected]"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets"
  install_resource "${PODS_ROOT}/../../XCAssetsIssueDemo/Assets/Resouces.xcassets/Name-XCAI.imageset"
fi

mkdir -p "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}" # 创建目标构建目录中的资源文件夹。
rsync -avr --copy-links --no-relative --exclude '*/.svn/*' --files-from="$RESOURCES_TO_COPY" / "${TARGET_BUILD_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}" # 使用rsync命令将资源文件从源位置复制到目标构建目录中。
if [[ "${ACTION}" == "install" ]] && [[ "${SKIP_INSTALL}" == "NO" ]]; then # 如果 ACTION 环境变量的值为 "install"，并且 SKIP_INSTALL 环境变量的值为 "NO"
  mkdir -p "${INSTALL_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}"
  rsync -avr --copy-links --no-relative --exclude '*/.svn/*' --files-from="$RESOURCES_TO_COPY" / "${INSTALL_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}"
fi
rm -f "$RESOURCES_TO_COPY" # 删除之前创建的资源文件列表

# 如果存在 WRAPPER_EXTENSION 环境变量的值，并且 xcrun --find actool 命令可以找到 actool，并且 XCASSET_FILES 数组不为空
if [[ -n "${WRAPPER_EXTENSION}" ]] && [ "`xcrun --find actool`" ] && [ -n "${XCASSET_FILES:-}" ]
then
  # Find all other xcassets (this unfortunately includes those of path pods and other targets).
  OTHER_XCASSETS=$(find -L "$PWD" -iname "*.xcassets" -type d) # 查找所有的 .xcassets 文件，并将其存储在 OTHER_XCASSETS 变量中。
  while read line; do
    if [[ $line != "${PODS_ROOT}*" ]]; then
      XCASSET_FILES+=("$line")
    fi
  done <<<"$OTHER_XCASSETS" # 遍历 OTHER_XCASSETS 中的每个文件路径，如果该文件路径不是以 ${PODS_ROOT} 开头，则将其添加到 XCASSET_FILES 数组中。

  if [ -z ${ASSETCATALOG_COMPILER_APPICON_NAME+x} ]; then #如果 ASSETCATALOG_COMPILER_APPICON_NAME 变量未定义，则调用 xcrun actool 命令来编译和压缩 .xcassets 文件，并将其输出到目标构建目录中的资源文件夹。
    printf "%s\0" "${XCASSET_FILES[@]}" | xargs -0 xcrun actool --output-format human-readable-text --notices --warnings --platform "${PLATFORM_NAME}" --minimum-deployment-target "${!DEPLOYMENT_TARGET_SETTING_NAME}" ${TARGET_DEVICE_ARGS} --compress-pngs --compile "${BUILT_PRODUCTS_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}"
  else # 如果 ASSETCATALOG_COMPILER_APPICON_NAME 变量已定义，则在编译 .xcassets 文件时指定应用程序图标，并将相关信息输出到临时目录中的信息属性列表文件。
    printf "%s\0" "${XCASSET_FILES[@]}" | xargs -0 xcrun actool --output-format human-readable-text --notices --warnings --platform "${PLATFORM_NAME}" --minimum-deployment-target "${!DEPLOYMENT_TARGET_SETTING_NAME}" ${TARGET_DEVICE_ARGS} --compress-pngs --compile "${BUILT_PRODUCTS_DIR}/${UNLOCALIZED_RESOURCES_FOLDER_PATH}" --app-icon "${ASSETCATALOG_COMPILER_APPICON_NAME}" --output-partial-info-plist "${TARGET_TEMP_DIR}/assetcatalog_generated_info_cocoapods.plist"
  fi
fi

explanation [ -z ${ASSETCATALOG_COMPILER_APPICON_NAME+x} ]

  1. -z：这是条件测试运算符，用于检查给定字符串是否为空。
  2. 在${ASSETCATALOG_COMPILER_APPICON_NAME+x}中，x是一个占位符。它可以是任何非空字符串，没有特定的含义。在这里，它被用作一个标记，用于判断环境变量ASSETCATALOG_COMPILER_APPICON_NAME是否已定义。 ${ASSETCATALOG_COMPILER_APPICON_NAME+x}的含义是，如果ASSETCATALOG_COMPILER_APPICON_NAME已定义，那么整个表达式将被替换为x（即非空字符串），否则，整个表达式将被替换为空字符串。 使用${variable+value}的语法是一种扩展语法，用于在变量已定义时提供一个备用值。在这个特定的条件测试中，我们不关心实际的备用值是什么，只要它不为空即可。因此，x可以是任何非空字符串，它只是用作一个占位符，以表示变量已定义。
  3. 这是条件测试结构的标记，在条件测试中使用。

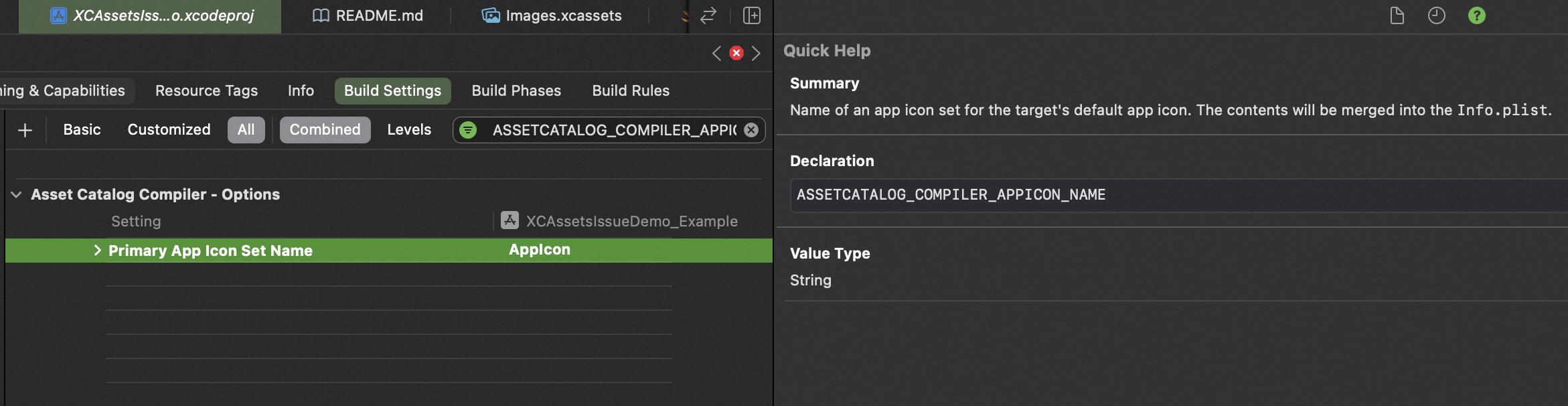

explanation ASSETCATALOG_COMPILER_APPICON_NAME

ASSETCATALOG_COMPILER_APPICON_NAME 是一个环境变量，其含义可以根据上下文和使用的上游工具而有所不同。通常情况下，它用于指定应用程序在 Asset Catalog 中使用的应用程序图标的名称。

ASSETCATALOG_COMPILER_APPICON_NAME

CocoaPods
iOS CocoaPods StaticLib Framework
